Description
Feature
. Convenient wiring: Two-wire, polarity-free
. Reliable communication: Built-in microprocessor, stable performance
. Ultra-low power consumption: Ultra-low monitoring current and alarm current
. Simple installation: With a plug-in structure, it is easy to install and construct
| Parameter | Introduction |
| Electrical | |
| Working Voltage | DC 24V |
| Rated Power | 0.04W |
| Current | l Monitoring current: 240μA
l Operating current: 6.5mA |
| Indicator | l Input indicator: Red LED flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned
l Output indicator: Red LED is constantly off when works normally, and flashes once every 2 seconds when malfunctioned |
| Communication Wiring | |
| Wiring | Two-wire, polarity-free |
| Addressing Method | Encoder |
| Address Range | 1–254 |
| Communication Distance | ≤ 1500 m |
| Environment | |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | –20°C to +65°C (–4°F to +149°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Construction | |
| Color | White |

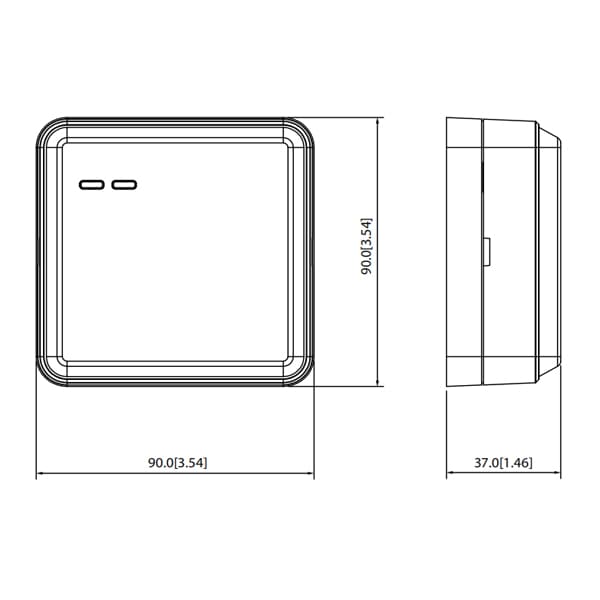

| Dimensions (with base) | 90 mm × 90 mm × 37 mm (3.54″ × 3.54″ × 1.46″) |
| Weight (with base) | 120 g (0.26 lb) |

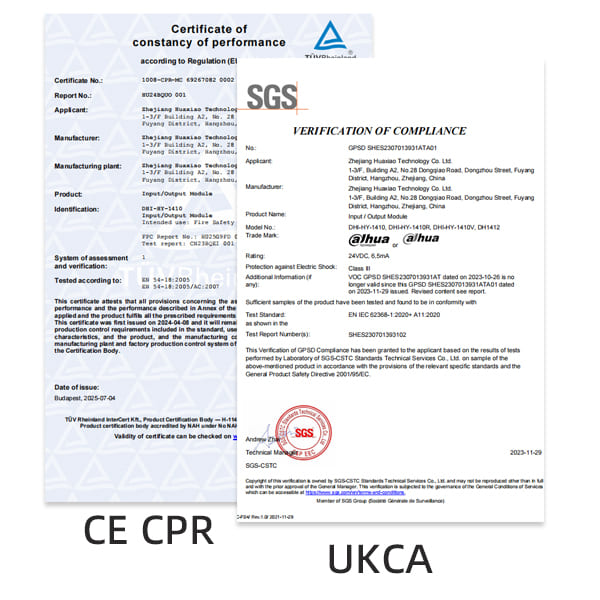

| Certification | EN54-18:2005+AC:2007 |
