Addressable Flashing Beacon Base

The TX7302 Addressable Flashing Beacon Base provides local audible and visual notification during a fire emergency, alerting nearby occupants to act appropriately. Powered directly by the fire alarm communication bus, it can operate as a standalone warning device or pair with a compatible detector to combine fire detection and local notification in one assembly.

Brand:
Tanda UK
SKU:
TX7302
Certification:
CE, CPR, LPCB
Highlights LEDs:
8
Tones:
17
SPL:
~87 dB

Use the TX7302 on Its Own or with a Detector

Both configurations mount on the TX7980. Fit the decorative cover for a standalone loop-powered warning device, or fit a compatible detector to combine detection and local warning.

Assembly schematic

Loop-powered sounder and supplementary LED indication.

Normal

The TX7302 waits for an activation signal on the addressable loop.

Activation depends on the system configuration. This demonstration is silent.

Single- and Dual-Address Configuration

Use the TX7930 handheld programmer to configure addressing and tones. The TX7302 offers 16 alarm tones and one warning tone.

Single Encoding

One address. Activation produces an alarm tone and an LED signal.

Dual Encoding Mode 1

Two addresses. The higher address is shared with the attached detector. Lower address: alarm. Higher address: warning.

Dual Encoding Mode 2

Two addresses without detector address sharing. Lower address: warning. Higher address: alarm.

Loop voltage
24 V DC nominal (20–27.5 V)
Current draw
0.8 mA standby · 5 mA alarm
Size with cover
Ø140 × 58.1 mm
Ingress protection
IP21
Operating temperature
−10°C to +55°C
Weight with / without cover
198 g / 180 g

Compatible Detectors & Mounting Base

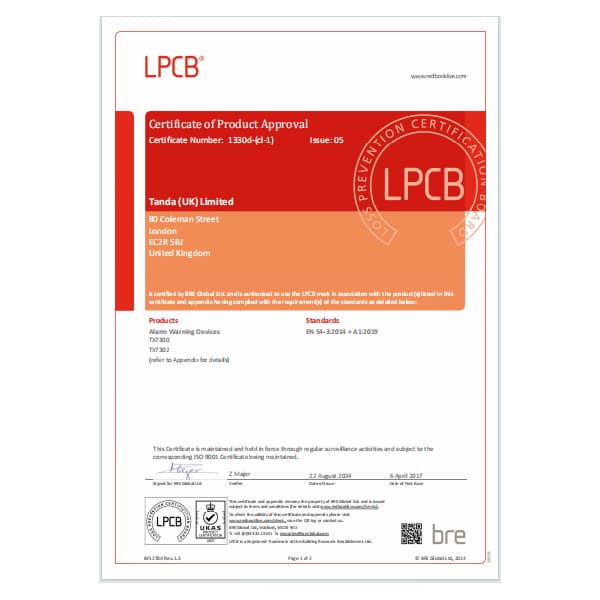

EN 54-3 Audible Alarm Approval

LPCB reference 1330d/02Type A indoor use

The LPCB listing covers tones 14, 16 and 17 under EN 54-3.

The LED flash is supplementary. It is not approved to EN 54-23 for use as a visual alarm device.

TX7302 Addressable Sounder Base with LED Strobe

The TX7302 adds an audible warning and a supplementary LED flash at the detector location. It draws power from the T&A addressable loop and can be fitted with a compatible detector or an upper cover.

Loop powered 8 LEDs Single or dual addressing

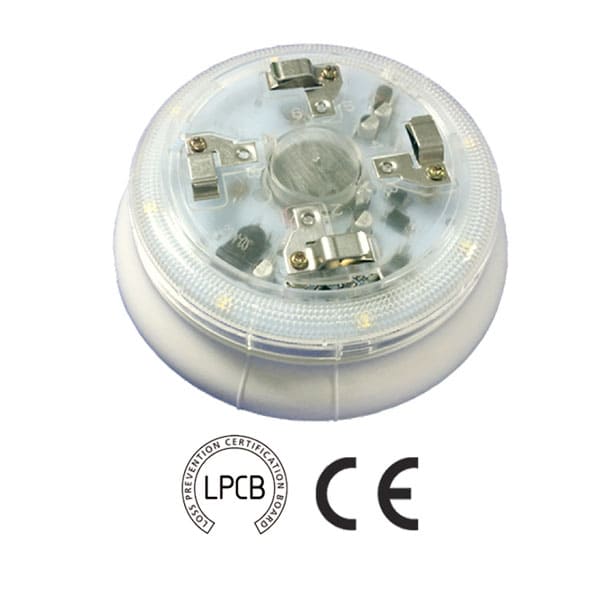

TANDA TX7302 addressable sounder base with a white circular housing
Listed LPCB / CE-CPR
Compliance 54-3:2001 + A1:2002 + A2:2006
Power Rating
Input Voltage Loop Power: 24VDC [20V to 27.5V]
Current Consumption Standby: ≤0.8mA, Alarm: ≤5mA
Sounder Strobe Base
Protocol/Addressing T&A, Value range from 1 to 254
Address Sequence Single-encoding Mode: Alarm
Dual-encoding Mode 1:1st Alarm / 2nd Warning
Dual-encoding Mode 2: 1st Warning / 2nd Alarm
Strobe 8 highlights LED
Base TX7980 Detector Base (Excluded)
Material / Color ABS / White glossy finishing
Dimension / Height Diameter 140mm / 59.1mm (with a cover)
Weight 198g (with a cover)/180g (without a cover)
Class Type A, Indoors
Operating Temperature -10°C to +55°C
Ingress Protection Rating IP21
Humidity 0 to 95% Relative Humidity, Non condensing

Terminal Description

1. Signal In (+)
2. Signal Out (+)
3. Remote Indicator (+)
4. Remote Indicator (+)
5. Signal In (-)
6. Signal Out (-)
7. Remote Indicator (-)

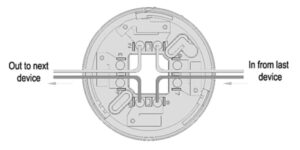

TX7100-smoke-detector-wiring
