Addressable Zone Monitor Module

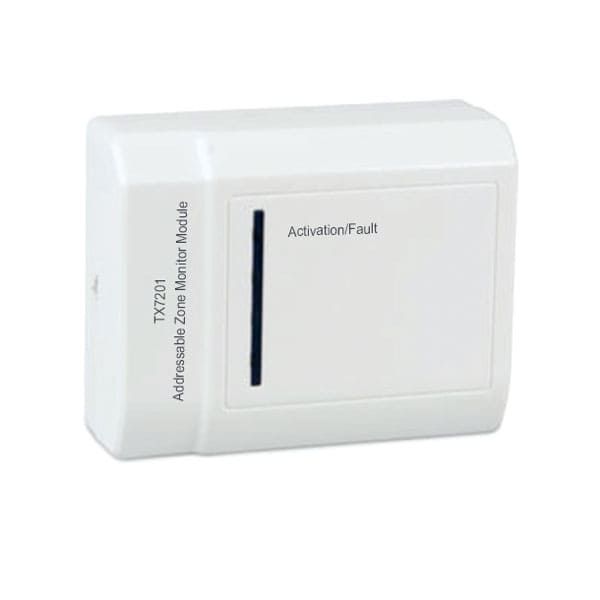

TX7201 Addressable Zone Monitor unit is an addressable interface module, which will integrate conventional detectors or conventional manual call points to addressable system. When any of the connected devices alarms are active, the unit can send the alarm message to fire alarm controller, which generates alarm signal and displays its address. The unit can match with the conventional optical smoke detector, conventional rate of rise and fixed temperature detector and conventional manual call point etc. It has the function of checking short or open circuit of the output connection, by the End of Line Resistor (EOLR). The fault massage includes open circuit, short circuit or any removal of the detectors.

Brand:
Tanda UK
SKU:
TX7201
Capacity:
16 Detectors
Certification:
Complies with EN 54-2

Addressable Zone Monitor Module Overview

The unit manufactured base on the requirement of EN 54 part 18, European Standard. The unit is aesthetically pleasing with unobtrusive design that will complement modern building designs and its plug-in type assembles make installation and maintenance more convenient to the installer. The unit is compatible to the TX7004 Analogue Intelligent Fire Alarm Control Panel, produced by single
manufacture T&A, to avoid addressable communication compatibility problem.

Features and Benefits

• EN54-18 Compliance
• Built-in MCU processor and digital addressing
• Intelligent self-diagnosis of open circuit
• Enhanced capacity of interference resistance by using multilevel wave filtering process
• LED status indicator
• Onsite Adjustable Parameter
• Loop and external power input
• Aesthetically pleasing design
• Parallel connecting up to 16 conventional detector
• Unit mounting with fix base for simple installation

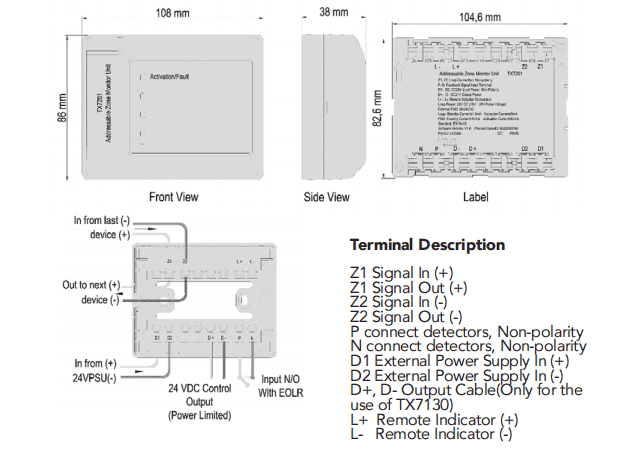

TX7201 wiring details
TX7201 wiring details
Listed LPCB Pending
Compliance EN54-18:2005/AC2007
Power Rating
Input Voltage Loop Power:24VDC [16V to 28V]
External PSU 20 to 28VDC
Current Consumption Loop: Standby 1.3mA, Alarm:5mA
External PSU Standby 10mA, Alarm: 60mA
Control output voltage 24VDC (Only for the use ofTX7130, do not allow the short
circuit)
Module
24VDC / 2A rating Normally Open dry contact
Input Resistance 5.1Kohms/ ¼ W
Protocol/ Addressing T&A, Value range from 1 to 254
Indicator Status Normal: Single blink/Active:Steady/Fault: Double Blink
Material / Colour ABS / White Glossy finishing
Dimension /LWH 108 mm x 86 mm x38 mm
Weight 154g (with Base), 83g(without Base)
Operating Temperature -10°C to +50°C
Ingress Protection Rating IP30
Humidity 0 to 95% Relative Humidity, Non condensing
