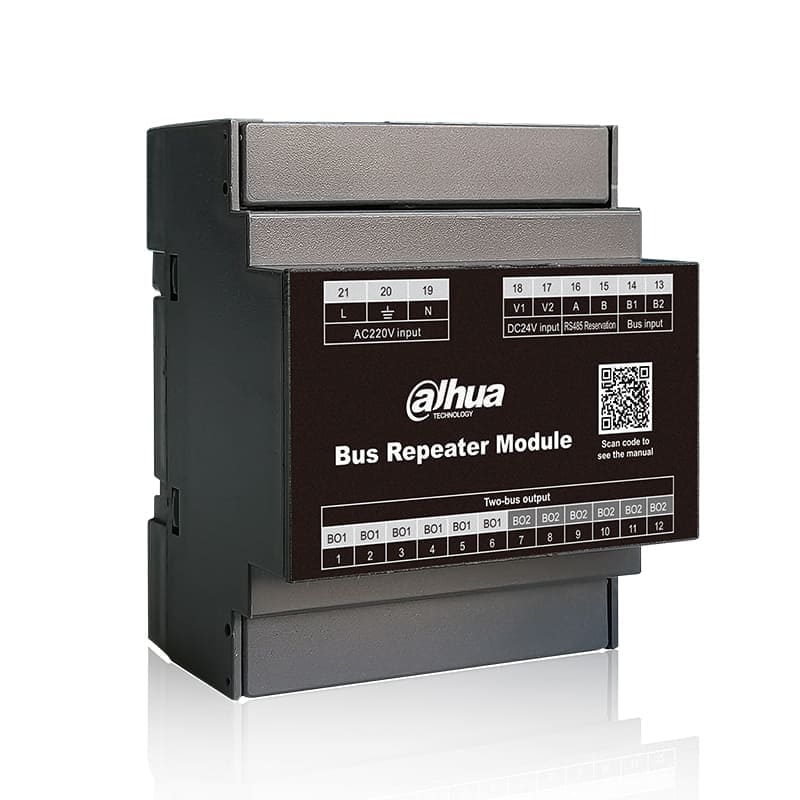

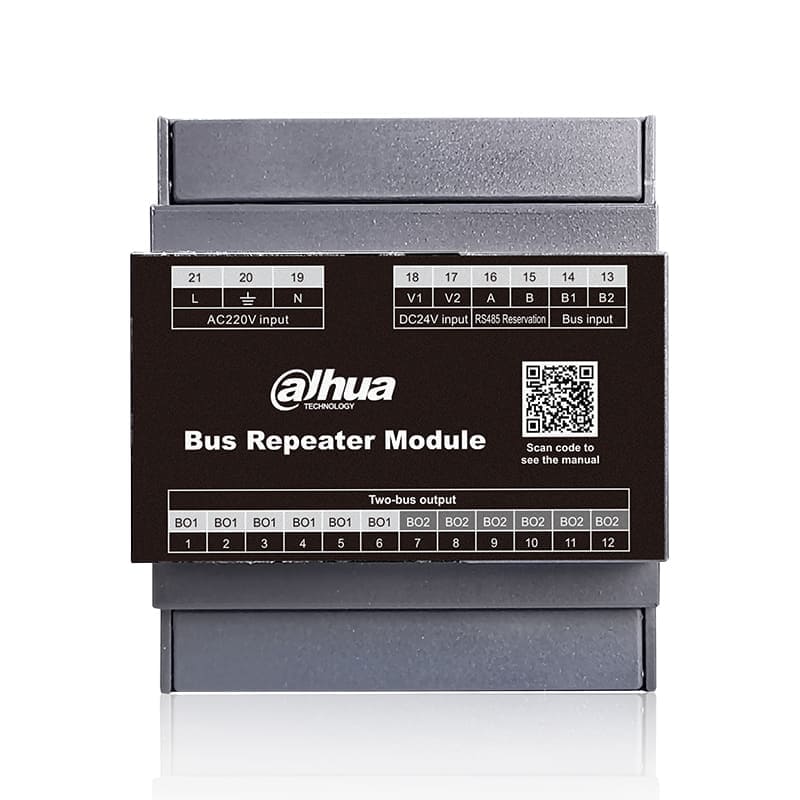

Bus Repeater Module

The bus repeater module is mainly used to solve the communication problems such as too long communication distance,too large interference of bus waveform and too strong attenuation of bus signal.

The bus repeater module realizes long distance,low delay and high reliability transmission of bus signals.

Brand:
Dahua
SKU:
DHI-HY-1462
Certification:
CE

Feature

  • Built-in isolated power supply with strong anti-interference ability
  • Bus and power line non-polar connection
  • The port has strong current protection function
  • Up to 128 devices can be connected
  • With short circuit protection function
  • Installation mode adopts guide rail type

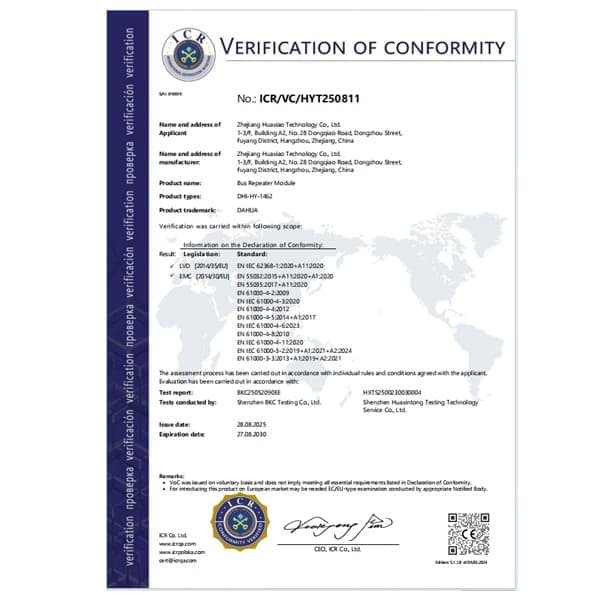

  • CE certified

Technical Specification

Working Voltage AC220V, the input voltage range is AC187V~AC264V
DC24V, the input voltage range is DC16V~DC30V
Output load capacity For AC220V input, the output load capacity is DC24V / 600mA
For DC24V input, the output load capacity is (input voltage − 0.5)V / 1A
Working Current 90mm × 78mm × 60mm
Relay Delay About 20us
Coding Method No coding required
Wire System Non-polar two-wire connection with the controller
Operating Temperature -10℃ ~ +50℃
Operating Humidity ≤ 95% RH (no condensation)
Shell Material ABS engineering plastic

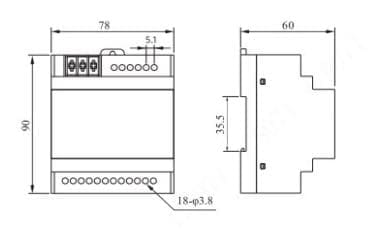

Dimensions 90mm × 78mm × 60mm
Guide groove width 35.5mm
Certifications CE
