LoRa Heat Alarm

Features

  • Reliable communication: Stable signal transmission with stronganti-interference ability.
  • Detection performance: Support on-site mute or loud modeconfiguration.
  • Fire warning: The audible and visible alarm signal makes the firewarning more obvious.
  • Environmental resistance: The contact material has high resistanceto acid and rust.
Brand:
Dahua
SKU:
DHI-HY-L132
Certification:
CE

Product information – LoRa Heat Alarm

The DHI-HY-L132 Heat Alarm (hereinafter referred to as the device) isdesigned to integrate with the automatic fire alarm system throughthe DHI-WG-1037 Wireless Gateway. It sends out audible and visiblealarm signals for fire warning when the predetermined temperatureis reached. It is suitable for manned places. In case of a fire, theon-duty personnel are required to notify personnel in relevant areasto organize evacuation, such as dormitories, shopping malls, teachingbuildings, office buildings and factories.

Technical Information

Specification Introduction
Operating Voltage DC 3V
Operating Current
  • Monitoring current: ≤ 15uA
  • Alarm current: ≤ 35mA
Communication Method LoRa
Operating Frequency 470 MHz–510 MHz
Communication Distance Open environment ≤ 1500 m, 3–5 blocks for normal walls
Alarm Mode Audible and visible alarm
Alarm Volume 45 dB–75 dB (A) at 3 m (9.84 ft)
Supply Voltage DC 3V, 2800mAh
Battery Life 5 years (40 alarm activations in 1 year)
Indicator
  • Standby: flashes green once per minute
  • Alarm: flashes red once per second
  • Fault: flashes red once per minute
Operating Temperature -10°C to +50°C (+14°F to +122°F)
Storage Temperature -20°C to +60°C (-4°F to +140°F)
Operating Humidity ≤ 95% RH (non-condensing)
Color White

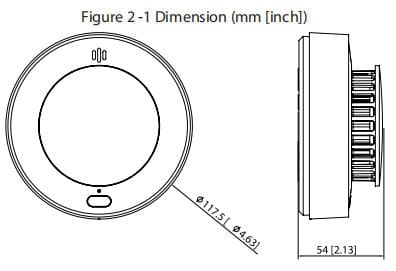

Dimensions Φ117 mm × H53 mm (Φ4.61″ × H2.09″)
Weight (with battery) 150 g (0.33 lb)
