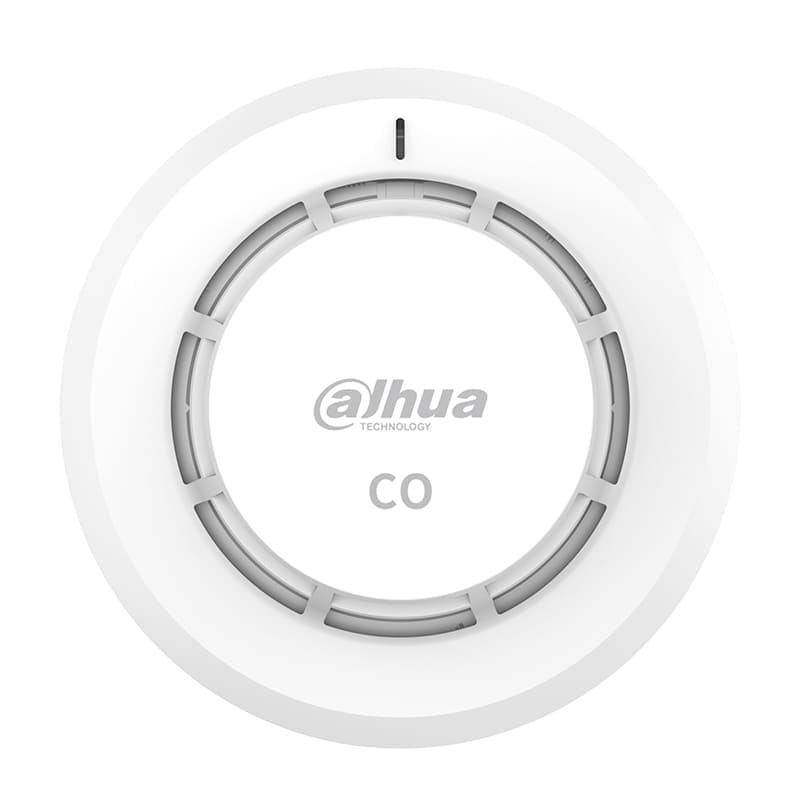

Addressable 4 wire Addressable CO Detector with Relay

Addressable CO Detector DHl-HY-AF640R, compatible with Dahuaaddressable fire alarm control panels, integrates CO detection intothe system. This significantly enhances system detection capabilities,enabling adaptation to diverse environmental requirements.CO detectors are safety devices for continuous monitoring of ambientCO concentrations. Upon detecting leaks exceeding preset thresholds,they trigger alarms and linkage the fire device through fire alarmsystem-to prevent explosions and protect personnel/property.

Brand:
Dahua
SKU:
DHI-HY-AF640R
Certification:
CE

Feature – Addressable 4 wire Addressable CO Detector with Relay

  • High Sensitivity Detection: Utilizing catalytic combustion sensors forprecise gas leak identification.

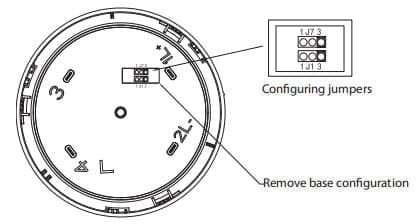

  • Selectable Relay Output Types: Jumper-selectable dry contact signaltype (NO or NC)
  • Short Warm-up Time: This CO detector achieves warm-up timesbelow industry averages, enabling faster operational readinesscompared to mainstream alternatives.
  • Two-wire and Polarity-free Design: Two-wire polarity-free designsignificantly simplifies installation and maintenance operations.

Technical Information

Parameter Introduction
Working Principle CO Detection
Operating Voltage DC 24V
Operating Current
  • Static current: ≤ 1mA
  • Alarm current: ≤ 5mA
Alarm Mode Indicator light alarm
Operating Temperature −5°C to +55°C (+23°F to +131°F)
Operating Humidity ≤ 95% RH (no condensation)

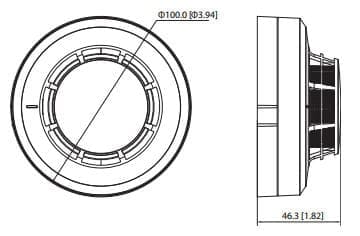

Dimensions Φ100 mm × 46.3 mm (Φ3.94″ × 1.82″)
Weight 110 g (0.243 lb)
Color White
Installation Ceiling mount / Wall mount
Detection Capability Detection range: 0–1000 ppm CO

Alarm triggers:

  • 30 ppm: ≤120 min alert (no prior alarm)
  • 50 ppm: ≤60 min (new) / ≤90 min (existing)
  • 100 ppm: ≤10 min (new) / ≤40 min (existing)
  • 300 ppm: INSTANT (new) / ≤3 min (existing)
Certification CE
