Addressable Manual Call Point

Name: Addressable Manual Call Point - FireMarket
SKU: TX7140

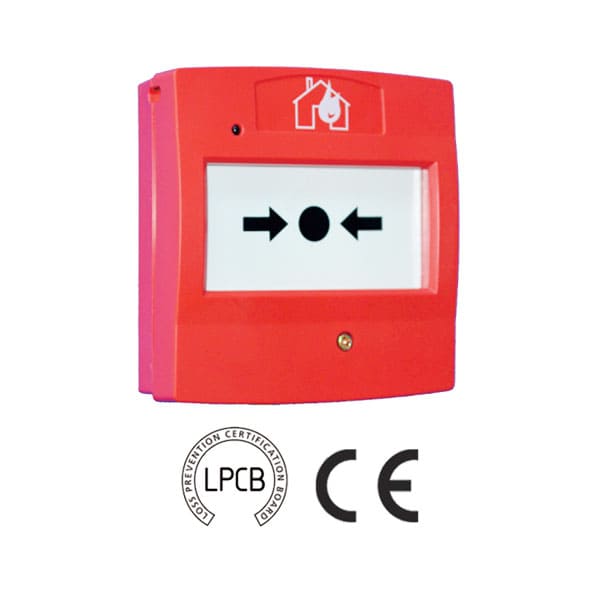

The TX7140 Addressable Manual Call point use a non-breakable glass which is designed to press under light pressure triggering the call point into an alarm condition, with LED indicator mounted onto the front face to simplify the location of an operated call point. Safe to press and no hammer is required. The protected flap on the lower part is used for reset through supplied special tool.

In the event of fire, once it is pressed, the LED goes on indicate the call point status and parallel sending communication signal to the control panel. The TX7140 manual call point is compatible to the TX7004 Analogue Intelligent Fire Alarm Control Panel, produced by single manufacture T&A, to avoid addressable communication compatibility problem.

Brand:

Tanda UK

SKU:

TX7140

Certification:

CE, DOE, LPCB

Activation:

Resettable

Description
Datasheet

Manual Call Point Features and Benefits

• EN 54-11:2001 + A1:2005

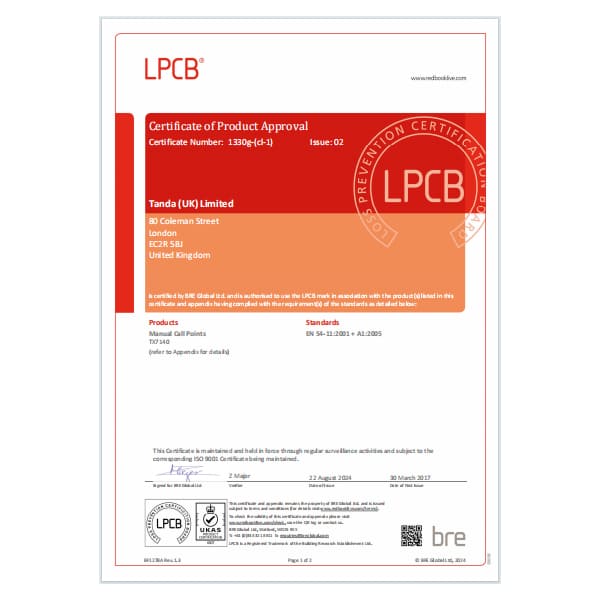

• LPCB Approved
• Using microprocessor technology
• Digital addressing
• Non-breakable glass and hammerless
• Safe to operate and easy to reset
• Semi-flash Mounted, indoor application
• Optional Backbox for Surface mount (TX7004-MB)

Technical Specification

Listed: LPCB / CE-CPR
Power Rating
Input Voltage: 24VDC [16V to 28V]
Compliance: EN 54-11:2001 + A1:2005
Call Point
Current Consumption Standby: 0.6mA, Alarm: 1.8mA
Protocol/Addressing: T&A, Value range from 1 to 254
Indicator: Single LED / Steady On-when pressed
Material / Colour: Fireproof ABS / RED Glossy finishing
Dimension: 89 mm x 93 mm x 35 mm
Weight: 102g (with Base), 80g (without Base)
Class: Type A, Indoors
Operating Temperature: -10°C to +55°C
Ingress Protection Rating: IP43
Humidity: 0 to 95% Relative Humidity, Non condensing

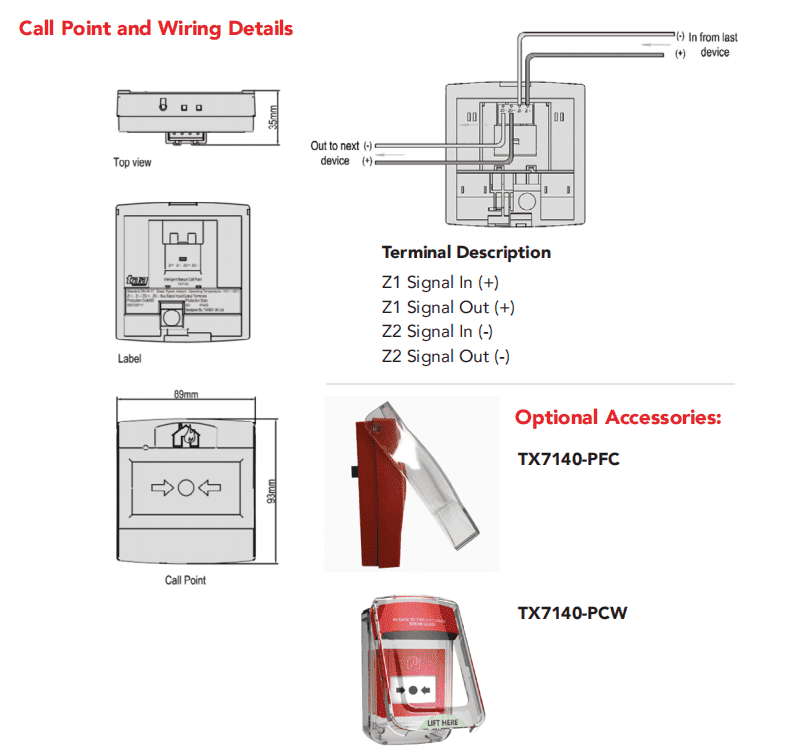

TX7140 wiering details

Ordering Information

TX7140	LPCB Approved. Resettable non-breaking glass addressable Recessed Mount MCP.Certi- fied EN54-11:2001 + A1:2005. Optional Back Box for Surface Mount
TX7140-MB	Optional surface mounting backbox

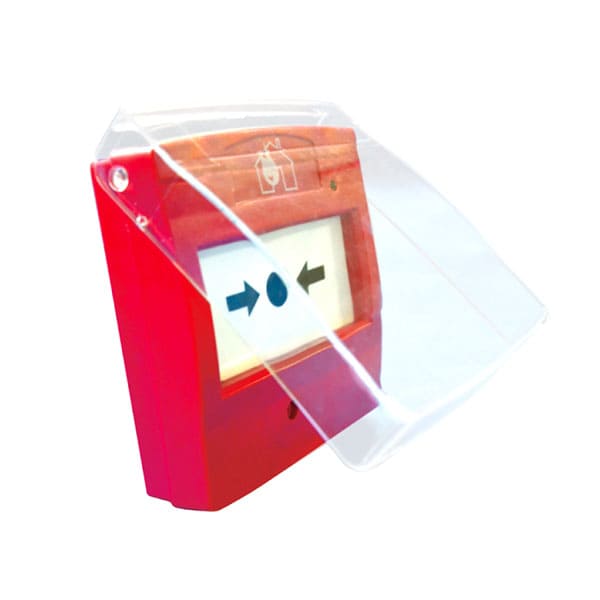

TX7140-PFC	Protective flip cover
TX7140-PCW	Weatherproof protective cover surface mount
