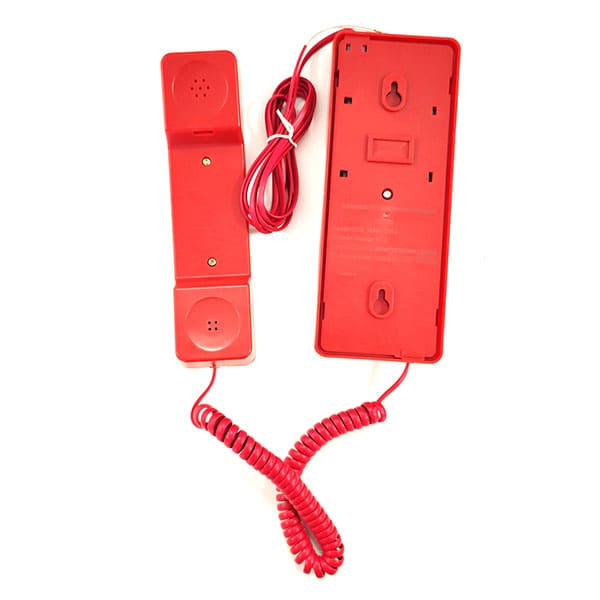

Addressable Fire Phone Station

TN7100 Addressable fire phone station is a bus communication device special for fire protection system. The extension can transmit and receive signals with a fire telephone control panel. It is suitable for hotels, restaurants, office buildings, teach buildings, banks, warehouses, libraries, computer rooms and switching rooms.

The extension can constitute a fire telephone system together with TN7000 Fire Telephone ControlPanel, TN7101 Fire Telephone Mobile Handset, TN7300 Addressable Fire Telephone Jack Socket and TN7301 Fire Telephone Jack Socket.

Brand:
Tanda UK
SKU:
TN7100
Get a Tailored Quote
Download Catalog

Features and Benefits

• Non-polarized two-wire for communication and talk, cost effective for wiring.
• Using electronic addressing.
• Lifting the extension can call a fire telephone control panel.
• As the extension receives a call from a fire telephone control panel, it will ring to remind customers of answering it.

Technical Specification

Power Rating
Power Rated: 24VDC(20VDC-28 VDC)
Current Consumption: Standby: 600uA / Talk current:25mA

Control Panel
Voice Frequency: 300Hz to 3400Hz
Material /Colour: Flat sheet metal / Dark Gray
Dimension: L:204 mm xW:80 mm xH:56.7mm
Weight: 0.35 Kg
Operating Temperature: -10’C to +55C
Humidity: 0 to 95% Relative Humidity Non condensing
