This gas detector is widely used in metallurgy, petroleum, chemical, mining, coking, municipal engineering, environmental protection, pharmaceutical, power, marine, sewage treatment, and other industrial sites where continuous monitoring of flammable, explosive, toxic, or hazardous gases is required.
| Item | Description |
|---|---|

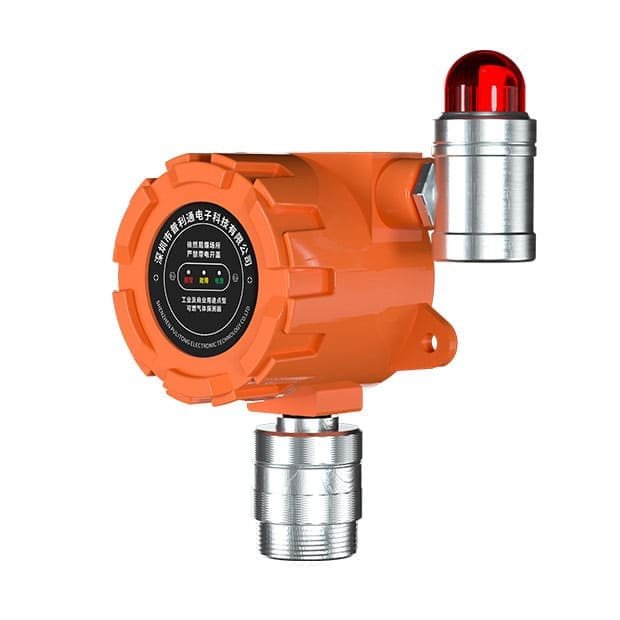

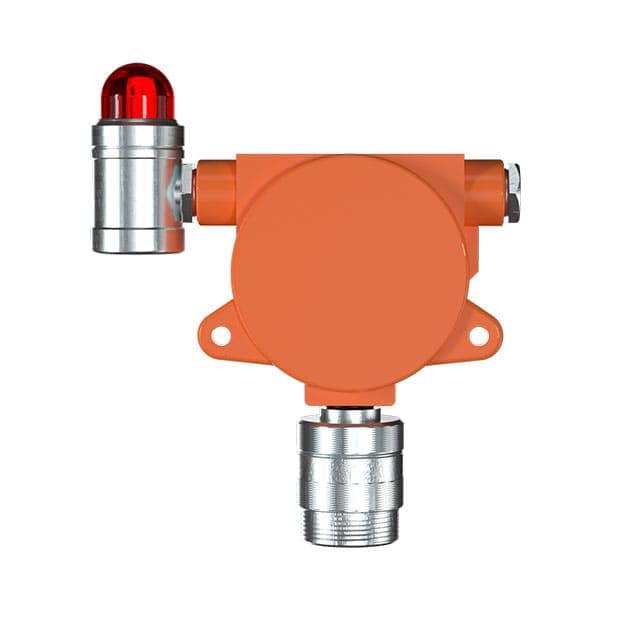

| Product Name | Industrial & Commercial Point-Type Gas Detector |
| Detection Principle | Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, etc. depending on the target gas |
| Display | Indicator light display |
| Detection Method | Diffusion type |
| Alarm Method | Audible and visual alarm; relay output alarm |
| Signal Output | RS485 signal output |
| Relay Output | Passive relay; output capacity: 12–220V, 2A |
| Installation | Wall-mounted or pipeline integrated installation |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–95% RH, non-condensing |
| Product Size | 185 mm × 140 mm × 95 mm |
