Beam Detector Feature
· Auto-alignment and manual alignment supported
· Compatible with Dahua’s addressable system protocol
· Direct integration with third-party detection systems
· Ultra low monitoring and alarm current
· Adjustable 3-level sensitivity
· Multi-state dual-color indicator
· CE Certified
Technical Specification
| Item | Specification |
|---|---|
| Working Voltage | 24V DC |
| Current | Monitoring current: ≤ 1mA Operating current: ≤ 2.5mA |
| Max. Optical Path Direction Deviation | ±0.5° |
| Optical Path Length | 10 m–100 m |
| Working Principle | Smoke detection |
| Installation Height | 6–12 m, max 20 m |
| Coverage Radius | 4.7 m at 100 m distance |
| Communication Method | Dahua addressable protocol or relay |
| Alert Events | Fire alarm and obstruction alarm |
| Calibration Method | Automatic calibration and manual calibration |
| Storage Temperature | −10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | ≤ 95% RH (no condensation) |
| Color | White |

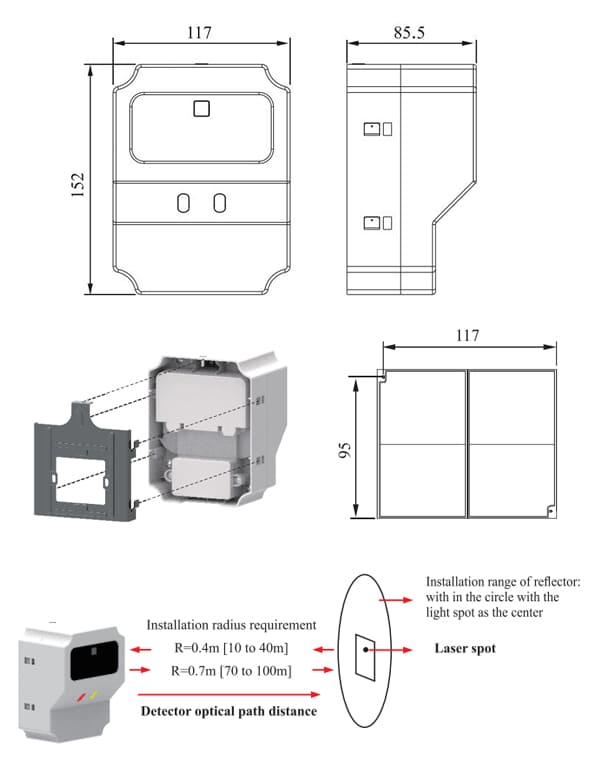

| Dimensions | 117 mm × 152 mm × 85.5 mm (4.61″ × 5.98″ × 3.37″) |
| Protection | IP65 |

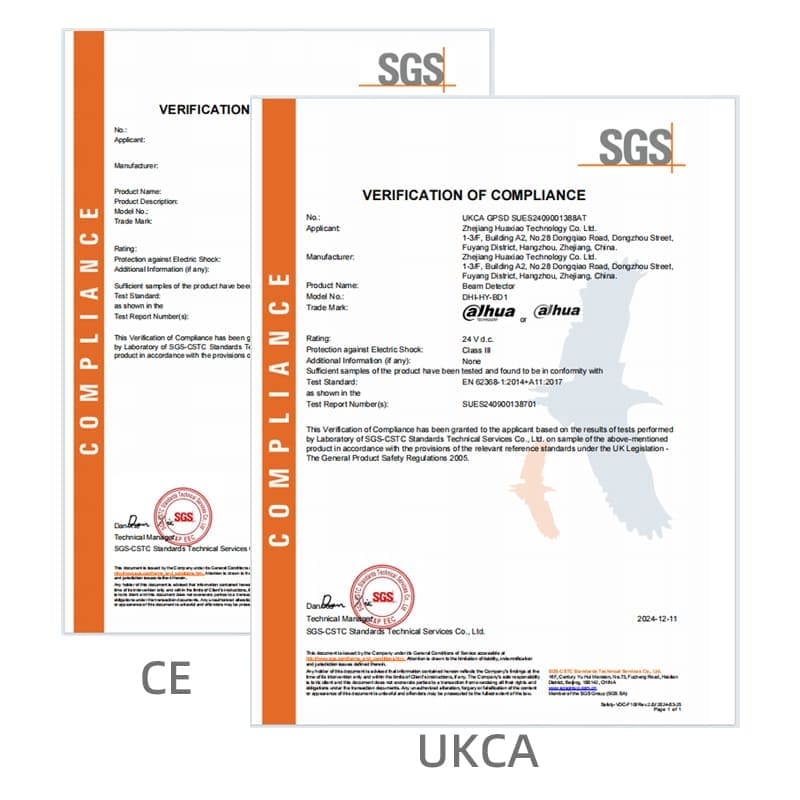

| Certification | CE |
