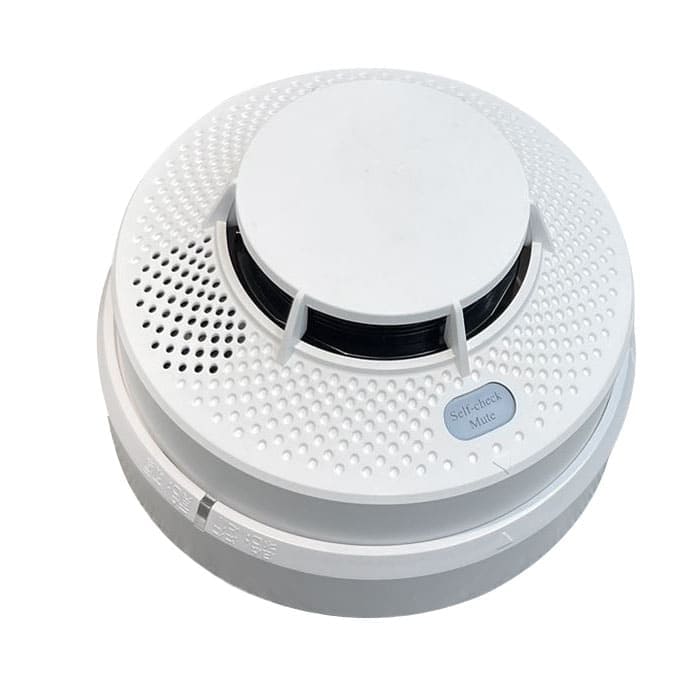

The TX3190A Wireless Standalone Smoke Detector is designed to detect significant smoke generation during the early stages of a fire and immediately trigger an alarm signal. The device incorporates a high-performance microcontroller (MCU) that automatically compensates for environmental variations and accurately evaluates fire conditions through its built-in program logic. Equipped with a reliable internal wireless communication module, the detector can seamlessly connect to a wireless gateway, ensuring stable and dependable performance. It is suitable for use in residential properties as well as small commercial and public facilities. The detector features a high-intensity internal buzzer that activates upon alarm and includes an infrared remote silence (mute) function for convenient operation.
• Lora Wireless Optical smoke alarm
• Low battery warning and LED status indicator
• 360-degree visual indicator
• Built-in local sounder; more than 80 dBA alarm signals
• Aesthetically pleasing design and easy to install

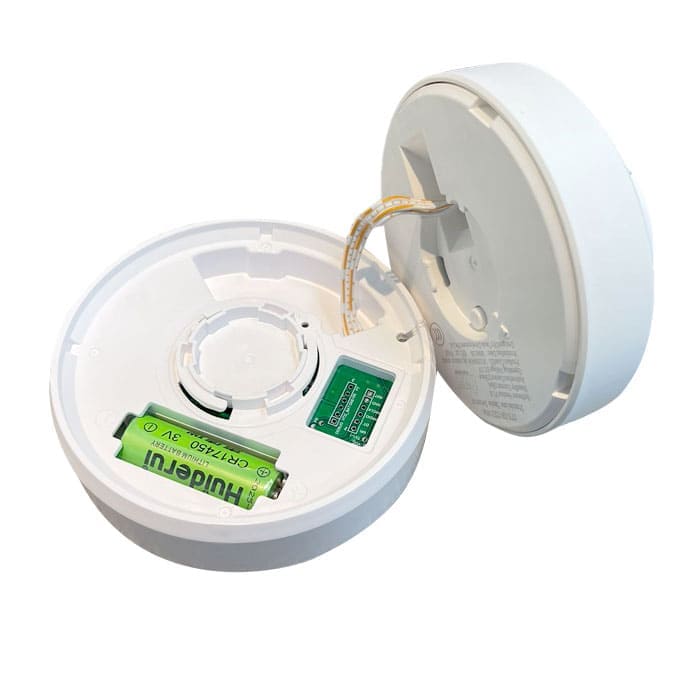

| Working voltage | DC3.0V(1 CR17450 Lithium battery). 3-5 years lifetime. |
| Current Consumption | Standby: <40uA, Alarm:<100mA. |
| Transmission Frequency | 470~510MHz |
| Transmission Distance | 300 meters maximum (Open area) |
| LED Indicator | Single LED / 360-degree Visual/ Normal: Red LED Flash every 75 seconds Alarm: Red LED flashes quickly, and the buzzer sends an alarm signal. Faulty: Yellow LED Flash every 50 seconds, short beep alarm |
| Weight | 225.6gr (with Battery) |
| Material/Color | ABS (flame retardant)/ pearl white |
| Dimension / LXHXW | -10°C to +55°C |
| IP rating | 30 |
| Humidity | 0 to 95% Relative Humidity, Non-condensing |
